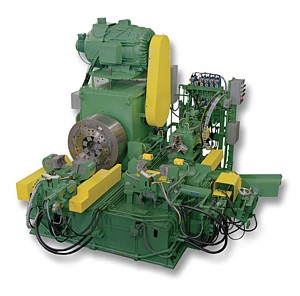

MODEL
CST07/CSO07
TECHNICAL SPECIFICATIONS
World Leaders in Tubular
Finishing Technologies
« Back
|
COUPLING STARTER:
- Spindle Speed, Feed and Torque are Independently Controlled
- Floating Spindle Prevents Misalignment of Coupling to Pipe
- Hydraulically Actuated Gripper Head
- Hydraulically Actuated Pipe Chuck with Adjustable Clamping Pressure
- Automatic Coupling Length Measurement
- End of Cycle Options
- By Torque - 550 N-m max. (400 ft-lbs) max.
- By Coupling Displacement
- Automatic Measurement and Recording of Preliminary "J" Dimension
- Coupling Loading Chute for Automatic Operation
- Automatic Coupling Greaser with Air Transfer Pump and Flow Measurement
COUPLING SCREW-ON:
- Spindle Speed: Variable
- Spindle Motor Power: 75 kW (100 hp)
- Make-Up Torque: 20,000 N-m (14,500 ft-lbs)
- Self Centering Pipe Chuck
- Hydraulically Actuated Pipe Chuck with Adjustable Clamping Pressure
- Hydraulically Actuated Coupling Chuck with Adjustable Clamping Pressure
- Automatic Measurement and Documentation of Torque/Turns/Stand-Off "J" and Shoulder Torque (Premium Connections)
COUPLING STARTER/SCREW-ON:
- PC-Based Windows® Operating System with Ethernet Connection
- Passive Network Communication with Host Computer
- Overall Dimensions: 3525mm x 2850mm
- Total Weight: 13,000 kg (28,600 lbs)
STANDARD FEATURES:
- Operator Interface Terminal (OIT) with PC
- Motor Control Center (MCC with PLC)
- Hydraulic Power Unit (HPU)
- Tooling for API Product
- Pre-programmed Make-up Software for TBG, CSG, LCSG and BCSG Product
- Operator Programmable for All Products
- On-Board Operator and Maintenance Manual at Operator Station
- Self Diagnostics Programmed into Machine Control Logic
- Walking Beam Transfer Table
OPTIONS:
- Torque Calibration gauge
- Sub-Base Completely Piped and Wired for Machines and Transfer Table
- Tooling and Programming for Premium Connections
- 50,000 N-m (35,000 ft-lbs) Torque Capability for Premium Connections
|
