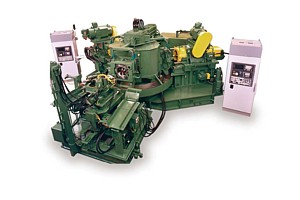

RTC13 Coupling Finishing Machine

MODEL
RTC13
TECHNICAL SPECIFICATIONS



World Leaders in Tubular
Finishing Technologies


« Back


4 STATION INDEXING TURRET WITH ROLL-OVER CHUCKS:

  • Servo-Hydraulic Drive that Indexes in 90° Increments
  • Locking Pins at Each Station Ensure Correct Alignment
  • Integral Chip and Coolant Trough
  • (4) Hydraulically Actuated Roll-Over Chucks with 6 Jaws at 60° Increments
    • 3 Centering Jaws (fixed)
    • 3 Clamping Jaws (floating)
    • Adjustable Clamping Pressure

LOAD/UNLOAD STATION:

  • Hydraulically Actuated Dual Head Design
  • Hydraulically Actuated, Replaceable Gripper Fingers

BORE STATION:

  • Two Axis CNC Rough and Finish Bore Machine
  • Spindle Speed: 500rpm
  • Spindle Motor: 95 kW (125 hp)
  • X-Axis (Radial) Stroke: 12mm
  • Z-Axis (Longitudinal) Stroke: 406mm
  • Coolant System: 150 liters/min @ 70 bar
  • Welded Construction Machine Bed and Spindle Housing
  • Hardened and ground, Replaceable Bed Ways
  • Self-Contained Spindle Lubrication

TAP STATION:

  • 2 Axis CNC Tap and Seal Machine
  • Spindle Speed: 500 rpm
  • Spindle Motor 95 kW (125 hp)
  • X-Axis (Radial) Stroke: 12mm
  • Z-Axis (Longitudinal) Stroke: 406mm
  • Coolant System: 150 liters/min @ 70 bar
  • Welded Construction Machine Bed and Spindle Housing
  • Hardened and ground, Replaceable Bed Ways
  • Self-Contained Spindle Lubrication
  • Overall Dimensions: 7920 x 8530 mm
  • Total Weight: 48,700 kg

STANDARD FEATURES:

  • Independently Controlled CNC Bore and Tap Stations
  • High Pressure Coolant System
  • Automatic Loader/Unloader with Adjustable Load and Unload Magazines
  • Chip Conveyor
  • Inspection/Tool Change Station
